Maidan Protection Technology

IP HD CCTV Systems

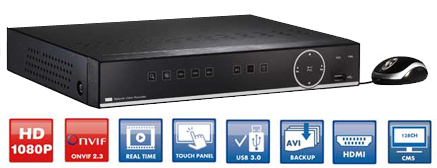

NVR200 - 4IT - POE, NVR200 - 8IT - POE, NVR200 - 16IT - POE

  1. Plug & View HD 1080P Resolution
  2. 4/ 8/ 16CH POE NVR: Built-in 48V DC POE Switch
  3. Real-Time 1080P Recording: 30fps on Each Channel
  4. Simultaneous HD Live View And Playback on The Same Screen
  5. Auto-Networking Function (Optional):
    No IP Address/ DDNS/ Router Mapping/ Port Forwarding
  6. Selectable Zoom Area During Live View And Playback
  7. AVI Backup Format from NVR to Backup Devices
  8. Client Software for Windows OS with 128CH Live View
  9. Dual Streaming: HD Quality to Local NVR; Smooth Video for Remote Access
  10. App for iOS and Android OS:
    - Streaming Adjustment on Mobile Devices Based on Your Bandwidth Efficiency
    - Dedicated HD Version for iPad and Android Tablets with Multi-Channel Live View and Remote Playback

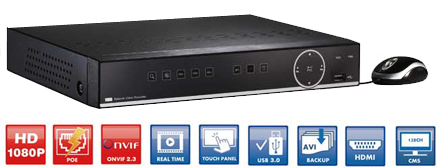

NVR200 - 4IT, NVR200 - 8IT , NVR200 - 16IT

Features

  1. Plug & View HD 1080P Resolution
  2. Real-Time 1080P Recording: 30fps on Each Channel
  3. Simultaneous HD Live View And Playback on The Same Screen
  4. Auto-Networking Function (Optional):
    No IP Address/ DONS/ Router Mapping/ Port Forwarding
  5. Selectable Zoom Area During Live View And Playback
  6. AVI Backup Format from NVR to Backup Devices
  7. CMS for Windows OS with 128CH Live View
  8. Dual Streaming: HD Quality to Local NVR; Smooth Video for Remote Access
  9. App for iOS and Android OS:
    - Streaming Adjustment on Mobile Devices Based on Your Bandwidth Efficiency
    - Dedicated HD Version for iPad and Android Tablets with Multi-Channel Live View and Remote Playback

Day & Night IP Camera

Features

  1. Auto-Networking
    (No IP Address/ DDNS/ Router Mapping/ Port Forwarding)
  2. Push Notification (PIR & Sound Detection)
  3. WPS (WiFi Protected Setup) Support
  4. Dual Lens for Day & Night Mode (No Color Difference)
  5. Two-way Audio
  6. Free Bundle 36CH VMS
  7. Record/ Playback in iPhone, iPad, and Android Devices



Specifcations

Model No. : EZ-IP01 HW
Product Name : IR Day & Night Auto-Networking IP Camera
Compression: H.264
Lens: 3.2mm (dual lens), 60 viewing angle
Image Sensor: 1/4" CMOS, Day & Night Separate Sensors Min. Illumination: 0.2 LUX/ F2.0 (0 LUX IR On)
IR Distance: 10 Meters
WPS: Automatic WiFi Setup
PIR Sensor: Body Detection, 7M Effective Distance Wireless: IEEE 802.11b/g/n
Video Settings:

  • Resolution: VGA (640x480), QVGA (320x240), QQVGA (160x120)
  • Bandwidth: 64k, 128k, 256k, 512k, 768k, 1M, 1.2M, 1.5M bps
  • Frame Rate: 5, 10, 15, 20, 25, 30fps

Remote View: 1E, Mac, PC Software, Mobile Phone Surveillance 3G Mobile Phone: iOS (iPhone, iPad), Android
PC Software: 36CH VMS (Video Management Software)
Storage: NAS, Micro SD Card, PC/ Laptop, Smart Phone Alarm & Event:

  • Events Triggered by PIR and Sound Detection
  • Push Notification on iPhone/iPad and Android Devices
  • Notification/ Upload of JPEG Images over ftp/ E-mail

Audio: Two-way Audio (Built-in Microphone, External Speaker Jack) Accessories: Adaptor, Bracket, Network Cable,
Quick Installation Guide, CD/Password Card, CD Power: 12V DC, 1A or 5V DC, 1A
Camera Size: 120mm(L) x 60mm(W) x 21mm(H)
Weight: 200 g (incl. Bracket)

EZ-IP722812IR130, EZ-IP722812IR200

Features

  1. ONVIF 2.3
  2. PoE (Power over Ethernet): Optional
  3. HD 1.3 MegaPixel (960P)/ HD 2.0 MegaPixel (1080P)
  4. Triple Stream: Main Stream, Sub Stream, Mobile Stream
  5. Day/ Night: Built-in 42pcs IR LED
  6. 40M IR Distance
  7. Weatherproof IP66
  8. Metal Housing to Withstand Years of Use
  9. IR-Cut Filter: No Color Difference at Day Time;
    Brighter Image at Night Time

EZ-IP7136IR130, EZ-IP7136IR200

Features

  1. ONVIF 2.3
  2. PoE (Power over Ethernet): Optional
  3. HD 1.3 MegaPixel (960P)/ HD 2.0 MegaPixel (1080P)
  4. Triple Stream: Main Stream, Sub Stream, Mobile Stream
  5. Day/ Night: Built-in 30pcs IR LED
  6. 25M IR Distance
  7. Weatherproof IP66
  8. Metal Housing to Withstand Years of Use
  9. IR-Cut Filter: No Color Difference at Day Time;
  10. Brighter Image at Night Time

EZ-IP6136IR130, EZ-IP6136IR200

Features

  1. ONVIF 2.3
  2. PoE (Power over Ethernet): Optional
  3. HD 1.3 MegaPixel (960P)/ HD 2.0 MegaPixel (1080P)
  4. Triple Stream: Main Stream, Sub Stream, Mobile Stream
  5. Day/ Night: Built-in 30pcs / 36 pcs IR LED
  6. 25M / 30M IR Distance
  7. Weatherproof IP66
  8. Metal Housing to Withstand Years of Use
  9. IR-Cut Filter: No Color Difference at Day Time;
  10. Brighter Image at Night Time
